Background
Fiber optic transport networks require high availability — a single fiber cut or signal degradation on a primary link can disrupt critical services for carriers, enterprises, and data center interconnects. Optical Line Protection (OLP) systems provide automatic failover to a standby fiber path, minimizing service interruption and enabling rapid recovery.
WXG Optics OLP solutions combine MEMS optical switch technology with intelligent power monitoring to deliver fast, reliable 1+1 link protection for point-to-point fiber deployments.
System Architecture

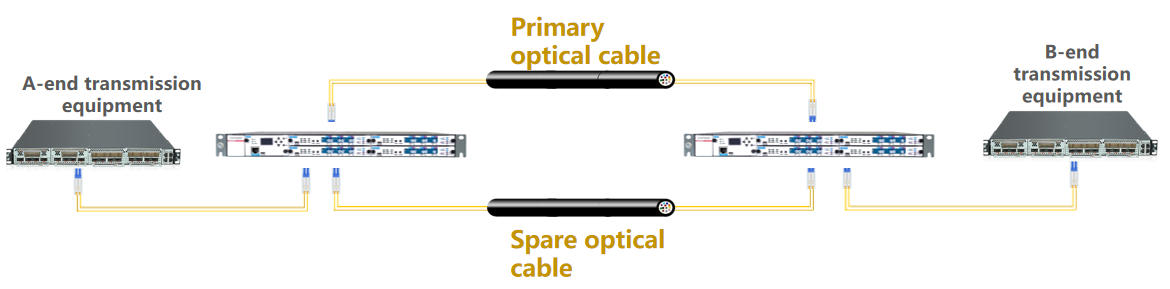

In a 1+1 OLP configuration, traffic is transmitted simultaneously on both a working (primary) fiber and a protection (standby) fiber. Optical power on the working path is continuously monitored. When signal loss or degradation exceeds a preset threshold, the system automatically switches traffic to the protection path within milliseconds — restoring service without manual intervention.
OLP Optical Line Protection Equipment
- 1+1 point-to-point protection — Fast switching functionality with dedicated working and protection fiber paths.
- Optical power monitoring — Continuous real-time monitoring of signal levels on the working path for early fault detection.
- Automatic path switching — Instant failover to the protection link when primary path failure is detected.
- Low insertion loss & fast switching — Minimal impact on link budget with rapid switchover to maintain service continuity.
- Intelligent monitoring — Built-in monitoring with logging and alarm functions for network operations centers.
- Flexible management — Serial port, network management, and button control; supports remote configuration and status reporting.
Key Functions
- Optical power monitoring — Real-time signal level measurement on working and protection paths
- Automatic optical path switching — Sub-second failover triggered by power threshold alarms
- Network management — Remote monitoring, configuration, and alarm reporting via SNMP/Ethernet
Typical Deployment Scenarios
- Carrier backbone and metro network link protection
- Data center interconnection (DCI) fiber redundancy
- Enterprise WAN primary/backup fiber routing
- DWDM network working/protection path switching
Recommended Products
WXG Optics provides MEMS optical switch modules (GY-1×N) for 1×2 OLP switching applications, and ROSW-1×N rack-mount systems for multi-link protection deployments. Contact us for customized OLP system integration.
