MEMS 1×N Optical Switch Module

1. Overview

A MEMS optical switch is an optical switching device based on micro-electro-mechanical systems (MEMS) technology. It utilizes the principle of light reflection and employs electrostatic actuation to control the deflection of a tiny mirror, thereby precisely controlling the transmission and switching of optical paths. As a critical fundamental component in modern optical networks, the MEMS optical switch enables direct physical routing of optical signals without the need for opto-electrical-to-optical conversion. This provides significant advantages such as high speed, low loss, and low power consumption, making it a core component for building intelligent, flexible, and highly reliable optical communication systems.

2. Features

1. Modular packaging
2. Fast switching speed
3. Low insertion loss and high repeatability
4. High reliability and stability

3.Applications

1. Metropolitan Area Networks
2. Data Centers
3. Fiber Optic Sensing and Monitoring
4. Optical Test and Measurement Systems

4.Optical path diagram

5. Specifications

1. All parameters were tested under room temperature conditions;

2. All parameters exclude connector insertion loss;

3. The wavelength-dependent loss test range is ±20 nm;

4. Switching time was tested using pin I/O switching;

1. All parameters were tested under room temperature operating conditions;

2. All parameters exclude connector insertion loss;

3. The wavelength-dependent loss test range is ±20 nm;

4. Switching time was tested using pin I/O switching;

6.Package dimensions

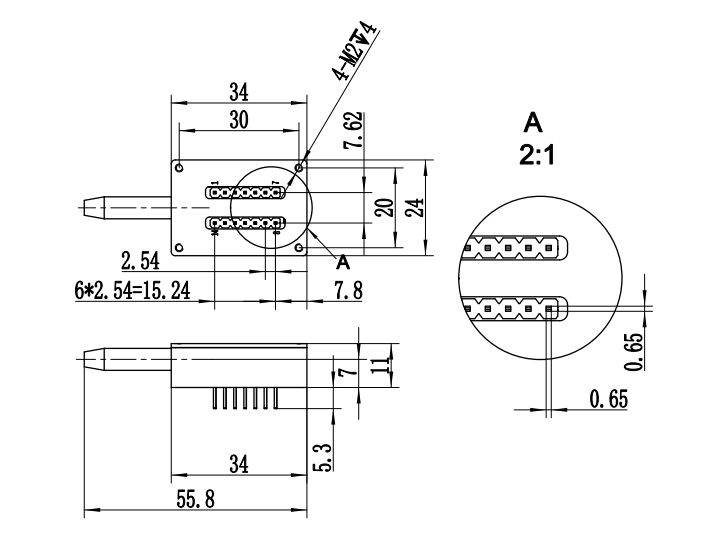

M1：34×24×11mm

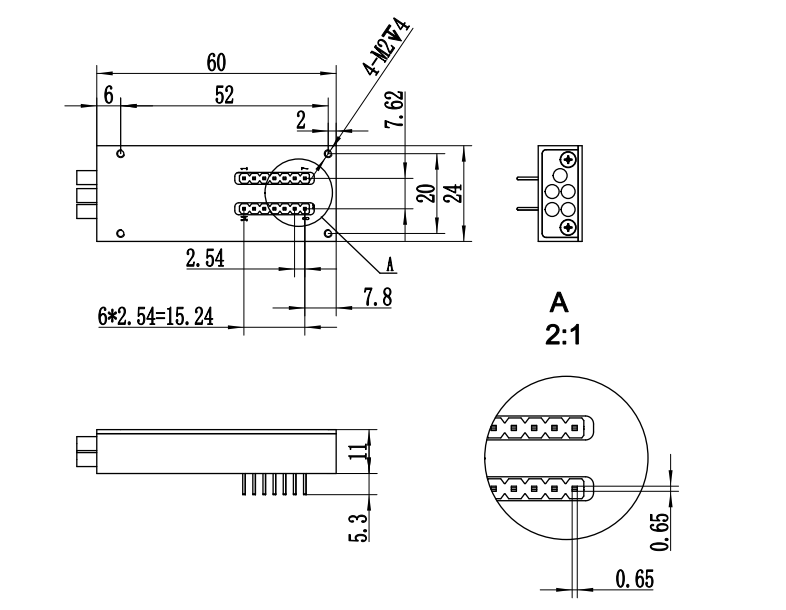

M2：60×24×11mm

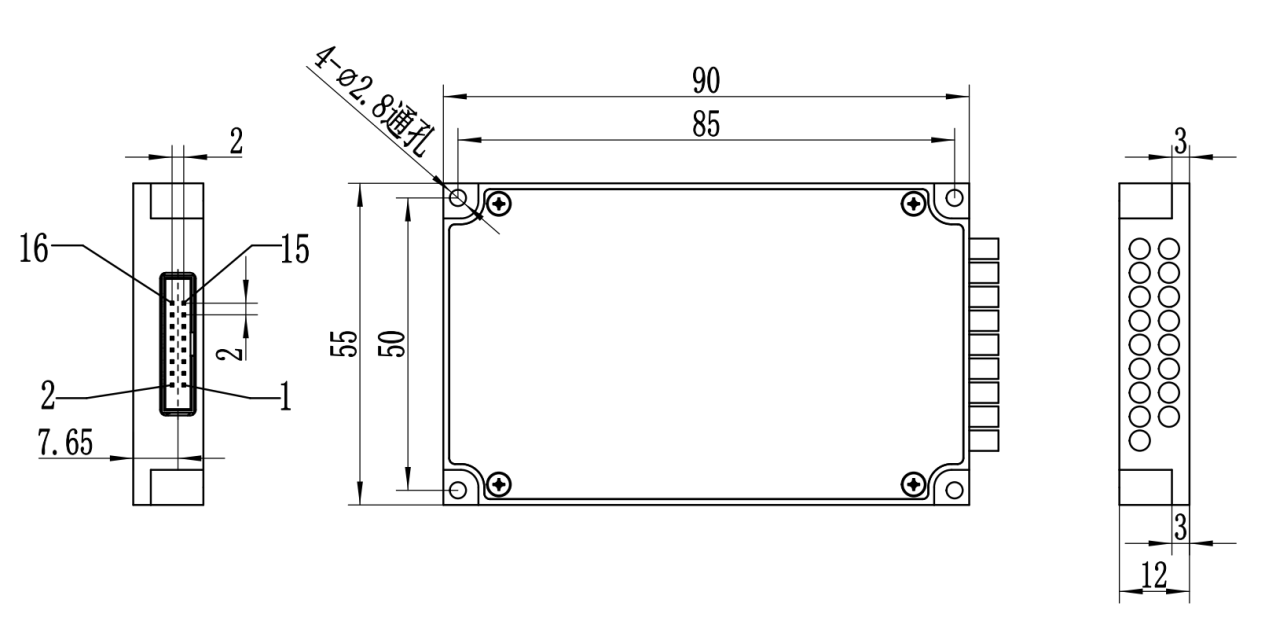

M3：90×55×12mm

TODO

M4：100×100×12mm

TODO

                                                                                   M5：110×141×12mm

7. Pin Definitions

Notes:

1. When using M1 or M2 enclosures with more than 16 channels, switching must be controlled via the serial port;

2. The electrical interfaces for M3, M4, and M5 modules use XFCN BH200R-16P;

3. The data bits D7–D0 are encoded to generate a data value; adding 1 to this value yields the channel to be switched, with the selection updated on the falling edge of the STROBE signal. For example, if the logic levels of D3, D2, D1, and D0 on an M1 module are 0, 0, 1, and 0, respectively, the encoded value is 2 in decimal. Adding 1 to this results in 3; after the STROBE signal becomes active, the module switches to channel 03.

8. Operating Instructions

1. Serial port baud rate: 9600; 8 data bits, 1 stop bit, no parity.

2. The optical switch can only execute one command at a time; you must wait for the program to return the corresponding value before entering the next command.

3. All letters in the commands must be uppercase.

4. In actual operation, use the angle bracket “<” as the start character and the angle bracket “>” as the end character.

5. OSWAA, where “AA” represents the address of the optical switch module; the default is 01.

Instruction set

9. Important Notes

1. Before use, clean the fiber end face of the connector with an alcohol swab. When not in use, ensure the dust cap is securely in place to prevent dust or other contaminants from contaminating or damaging the fiber end face. Damage or contamination of the fiber end face will affect the performance of the optical switch module.

2. Do not pull, bend, or twist the fiber, as this may cause damage.

3. Refer to this document for detailed pin definitions of the control interface and module installation instructions. Ensure correct wiring, and only apply power after verifying that the connections are correct.

4. Do not hot-swap the control cables while they are powered.

5. Do not look directly at the fiber end face when the optical switch module is receiving an optical signal. Laser radiation is invisible but can cause serious eye damage!

6. This device must be protected from fire and impact; avoid storing or operating it in excessively humid environments.

7. This device is a precision optical component; do not disassemble it without authorization to prevent damage.

8. When used under specified conditions, this product does not release pollutants into the atmosphere, water, or soil. The packaging does not contain hazardous waste and may be safely disposed of by the user.

9.Parts removed during product repair will be taken back by our maintenance personnel for disposal in accordance with regulations. When the product is discarded or scrapped, the user must dispose of it in accordance with environmental protection regulations.

10. Model Specifications

Ordering Information：MEMS 1×N-A-B-C-D-E-F-G

11. Packing List
