Background
Inline security appliances — including firewalls, intrusion detection systems, and encryption devices — are essential for protecting optical network traffic. However, if a security device fails, loses power, or requires maintenance, it can block the entire optical link and cause service outages.
Optical bypass protection solves this by automatically switching traffic around the security appliance when it is offline or unresponsive, ensuring continuous network connectivity while maintaining the ability to inspect traffic under normal conditions.
System Architecture

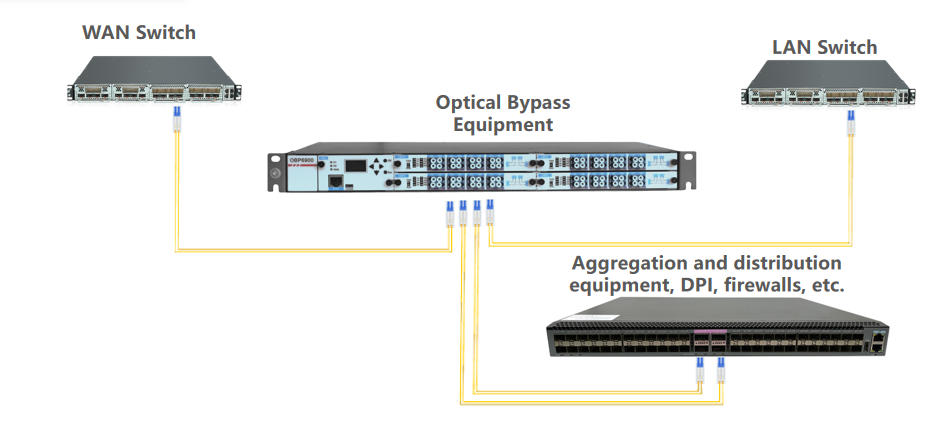

The optical bypass module is installed inline between the live fiber link and the security appliance. Under normal operation, traffic passes through the security device for inspection. When a fault is detected — including power loss, heartbeat timeout, or manual maintenance mode — the bypass switch instantly routes traffic directly through the fiber path, bypassing the security equipment entirely.
Optical Bypass Protection Equipment
- Lightless bypass — Fail-safe optical routing without requiring active optical power in bypass mode.
- Power-off bypass — Automatic traffic pass-through when the unit loses power, preventing link interruption.
- Heartbeat-free bypass — Bypass activation without dependency on continuous heartbeat signaling in critical scenarios.
- Low insertion loss & fast switching — Minimal impact on link budget with rapid path changeover during fault events.
- Intelligent monitoring — Built-in heartbeat detection, logging, and alarm functions for proactive maintenance.
- Flexible management — Serial port, network management, and button control options for field deployment and remote operation.
Integrated Capabilities
Beyond bypass protection, WXG Optics equipment in cybersecurity deployments also supports:
- Optical splitter amplification — Signal conditioning for tap and monitor ports
- Optical routing — Dynamic path selection between security, monitor, and bypass channels
- Optical bypass protection — Fail-safe traffic continuity for inline security appliances
Typical Deployment Scenarios
- Inline firewall and DPI appliance protection on carrier links
- Data center security gateway bypass for high-availability architectures
- Government and enterprise network security infrastructure
- Optical encryption device fail-over and maintenance bypass
Recommended Products
WXG Optics provides MEMS optical switch modules (GY-1×N) configurable for 1×2 bypass applications, as well as rack-mount ROSW-1×N systems for multi-link security deployments. Contact our engineering team for customized bypass protection solutions.
